| 색상: | 검은색 | 커넥터 응용: | 야외 주도하는, 가로등 |
|---|---|---|---|
| 보호 수준: | IP68 | 현재 등급: | 15a |
| 커넥터 성별: | 남성과 여성 | 연락처 수: | 2-5 |
| 정격 전압: | 250V | 자격증: | UL, CE, CCC, TUV |
| 전압 등급: | 250V | 절연 저항: | ≥1000mΩ |
| 견본: | 무료 | ||
제품 설명

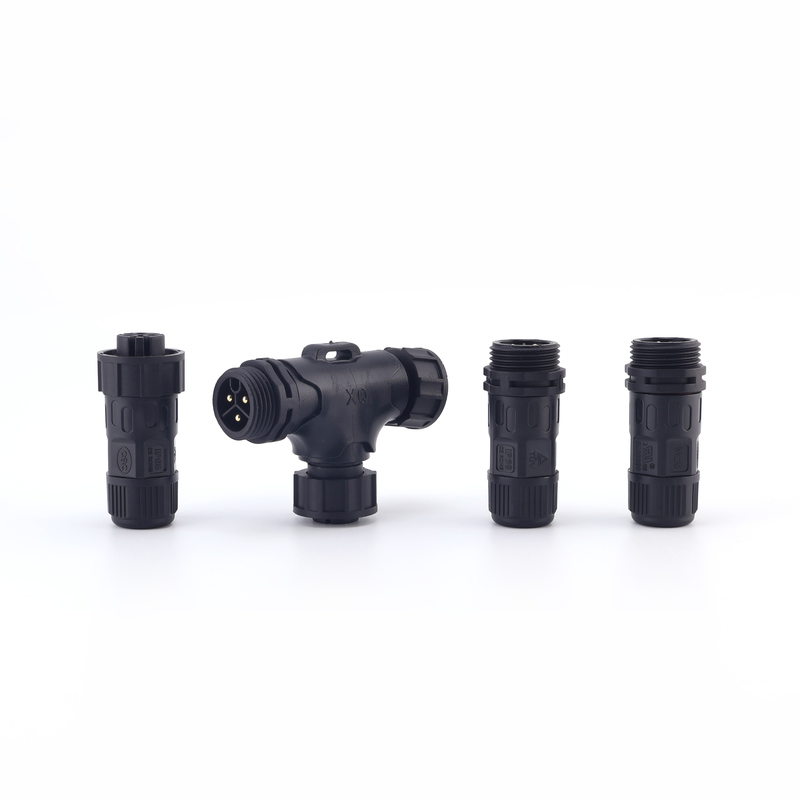

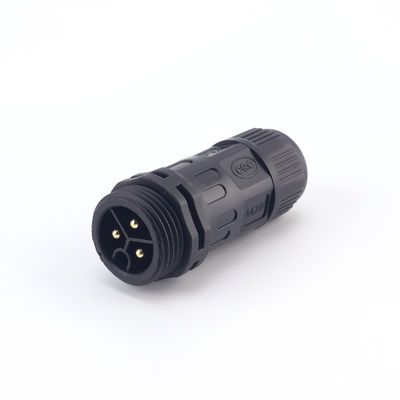

China Factory Screw Type Assemble Connector IP68 M20 Tee Outdoor LED Waterproof Plug

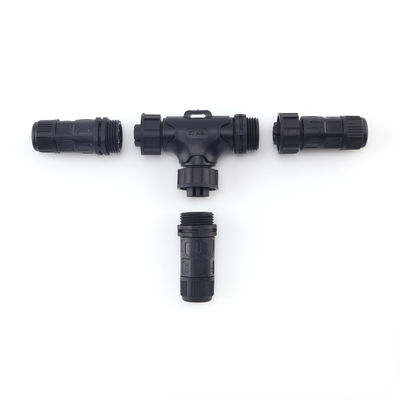

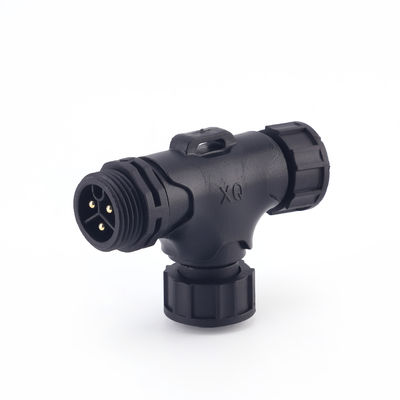

The M20 threaded T-type IP68 waterproof connector is made of high-strength engineered nylon and is designed for outdoor LED lighting, power branching, and waterproof electrical connections.

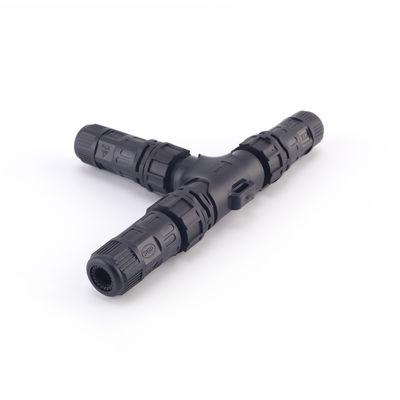

This connector features a T-shaped structure with one incoming cable and two outgoing cables. It is widely used in outdoor lighting projects, landscape lighting, road and tunnel lighting, agricultural equipment, and renewable energy power distribution.
The threaded connection provides robust mechanical strength and sealing, ensuring a reliable connection even under prolonged vibration, strain, and harsh outdoor conditions.
With an IP68 rating, it effectively prevents dust and water intrusion, making it suitable for long-term outdoor use and ensuring secure power and signal transmission.
Parameters:
| Company Name | Xiangqian |
| Connector Type | Assemble IP68 M20 Tee Waterproof Connector |
| Current Rated | 15A |
| Voltage Rated | 250V |
| Connector Cores | 3 cores(Customized) |
| Contact Resistance | ≤10mΩ |
| Cable Diameter | Ø5.0–11.0 mm |
| Material | PA66(UL94 V-0 |
| Operating Temperatures | -40℃ ～ +105℃ |
| Highlight | Tee 3 Way LED Waterproof Connector, IP68 M20 Electric Waterproof Plug |
Performance Test Report (Factory Test)
| Test Project | Test Conditions | Result |
| Appearance and assembly | Visual inspection of housing, terminals, seals; thread fit and self-locking piece action | No cracks or burrs; Smooth locking |
| Continuity/Polarity | All pins are connected one by one and the polarity is checked | All correct, no mistakes |
| Pressure resistance | 500V AC / 60 s | No breakdown or flashover |
| Waterproof performance (IP67/IP68) | After docking and locking, 1 m water depth / 30 min | No water seepage, no degradation of electrical performance |
| Plug and unplug life (spot check) | Retest electrical performance after 200 cycles | All indicators remain qualified |
| Salt spray test (optional) | 5% NaCl solution, 48 h | The terminals are free of red rust and function normally. |
| Contact resistance | Milliohm meter measures each needle | ≤ 10 mΩ |
| Insulation resistance | 100V DC, pin-to-pin / pin-to-shell | ≥ 100 MΩ |
Product Advantages
- High Protection Rating: IP68 protection, completely dustproof, maintains stable performance even in long-term underwater environments.
- Easy Installation: M20 self-locking threads, combined with a silicone seal, quickly tighten for waterproof and dustproof operation.
- Weatherproof: UV- and corrosion-resistant, suitable for harsh environments such as rain, humidity, and high and low temperatures.
- Flexible Structure: T-shaped design accommodates multiple branching points for LED lighting, reducing wiring complexity.
- Reliable and Secure: High-quality copper pin terminals offer low contact resistance, excellent conductivity, and long service life.
- Customizable: Supports customization of cable length, number of conductors, current rating, and color to meet diverse needs.
After-Sales Service
- Warranty: Our products come with a 12-month warranty from the date of manufacture. If any quality issues arise under normal use, we will provide free replacement or repair.
- Technical Support: We provide professional selection guidance and installation solutions to ensure worry-free use.
- Customization: We offer OEM/ODM customization services based on customer needs, including laser marking and custom packaging.
- Quick Response: We respond to after-sales issues within 24 hours to ensure project progress is not impacted.
- Sample Support: We provide sample testing services to help customers quickly verify product performance.
FAQ
1. What is the waterproof rating of this M20 threaded T-type waterproof connector?
With an IP68 rating, it can operate reliably in harsh outdoor environments such as rain, water spray, and humidity.
2. What applications is it suitable for?
Primarily used in outdoor LED lighting, landscape lighting, streetlights, billboards, electrical control systems, and other applications requiring T-type wiring.
3. What is the maximum current/voltage supported?
Typically, the rated current is 15A and the rated voltage is 250V AC (this varies depending on the number of pins; higher current options are available).
4. Can the number of pins be customized?
Yes, the standard range is 2-5 pins, but special requirements can be met.
5. Is it easy to install?
It features a threaded fastening structure with internal buckles and a sealing ring for dual protection, ensuring fast, secure, and reliable connection.
