상세 정보 |
|||
| 상표: | 셴그첸 | 연결기 이름: | M25 IP67 방수 커넥터 |
|---|---|---|---|
| 재료: | PA66, 나일론 | IP 등급: | IP67 |
| 케이블 OD: | 6.0mm-14.0mm | 연결기 핵심: | 3+4 핀 |
| 인증서: | UL, TUV | 견본: | 무료 |
| 배달 시간: | 3-5 일 | ||
제품 설명

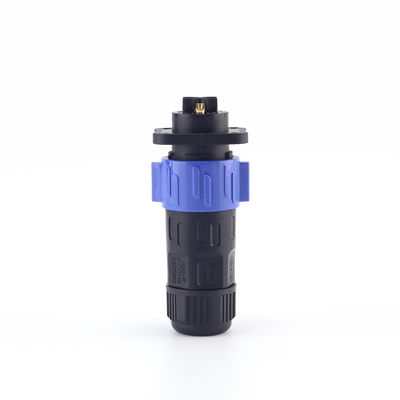

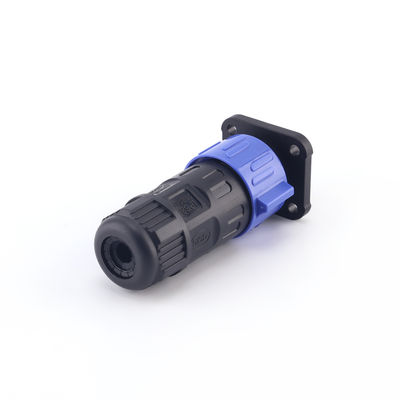

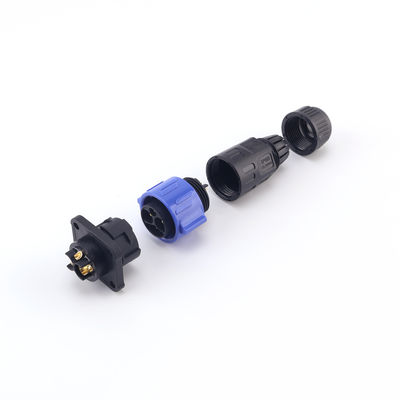

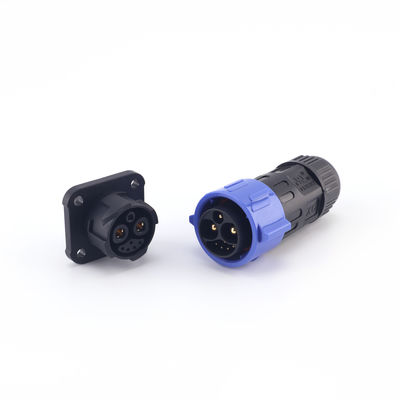

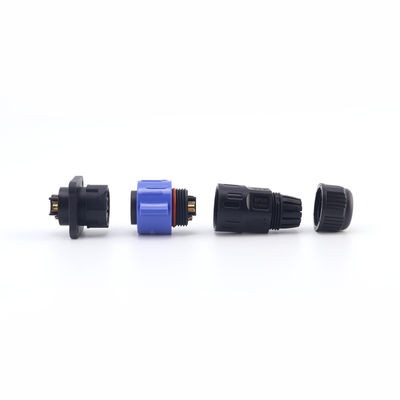

IP67 Panel Mount Plug M25 Self-locking Outdoor LED Light Waterproof Power Connectors
The nylon self-locking M25 outdoor high-voltage waterproof connector is a high-reliability connection solution designed for outdoor power transmission and lighting systems. The housing is made of high-strength engineered nylon (PA66), offering excellent resistance to high temperatures, impact, UV rays, and flame retardancy, ensuring long-term stable operation in harsh environments.
The self-locking snap-on design ensures quick and secure connection, effectively preventing loosening due to vibration or external forces, ensuring a safe and reliable electrical connection. With an IP67 rating, it is dustproof and waterproof, making it suitable for a variety of outdoor applications, such as:
- LED street lighting systems
- Outdoor power and signal equipment
- Security surveillance camera systems
- Industrial machinery and transportation equipment
- Agricultural irrigation and new energy projects
Parameters:
| Cable OD | Ø6.0-14.0MM |
| Hardware Material | Copper gold plating |
| Contact Resistance | ≤ 10 mΩ |
| Connection Mode | Push Locking |
| Operating Rated | -40-+105 |
| Flame Retardant Grade | UL94 V-0 |
Performance Test Report (Factory Test)
| Parameter | Common typical values or ranges | Notes |
| Voltage Rating | 250 V / 400 V / 450 V | Some models support high voltage levels (such as solar or power systems) |
| Current Rating | 10 A ~ 30 A (depending on the number of poles, wire diameter, and contact area) |
For example, an M25 push-lock 2-pole connector is rated at 30 A. |
| Contact Resistance | ≤5 mΩ | Some outdoor connector designs require ≤ 5 mΩ to reduce heat and voltage drop |
| Dielectric Withstanding Voltage | Several thousand volts (e.g. 1.5 kV / 60 s, etc.) | Responding to surges or transient overvoltages |
| Insulation Resistance | ≥10 MΩ / 500 VDC | Prevent leakage and insulation breakdown |
| Operating Temperature | –40°C to +105°C (or higher) | For outdoor environments with temperature changes |
| Ingress Protection | IP68 | Indicates that it can be immersed in water for a long time under specified conditions and prevent dust from entering |
| Media durability / humidity / salt spray test | Often pass salt spray test / high humidity aging test | For long-term outdoor reliability |
Product Features and Benefits:
- Self-locking design: Fast plugging and unplugging, secure and stable, with strong shock resistance.
- High protection rating: IP67 waterproof and dustproof, suitable for harsh outdoor environments.
- High-quality material: PA66 nylon housing is lightweight, durable, flame-retardant and aging-resistant.
- Multi-core option: Customizable from 2 to 6 cores to meet power or signal transmission needs.
- Easy installation: Supports male/female docking, panel mounting, and cable customization.
