상세 정보 |
|||
| 상표: | 셴그첸 | 연결기 이름: | M23 푸시 잠금 커넥터 |
|---|---|---|---|
| 재료: | PA66 | 현재 등급: | 20A |
| 전압 정격: | 600V | 샘플: | 5개 무료 |
| 자격증: | ul | 배달 시간: | 5일 |
제품 설명

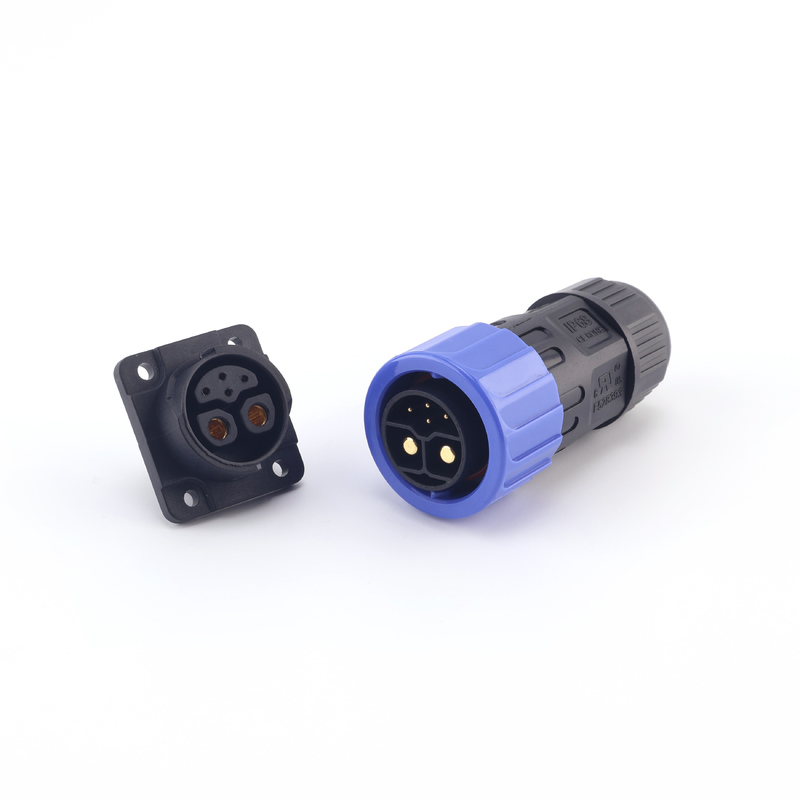

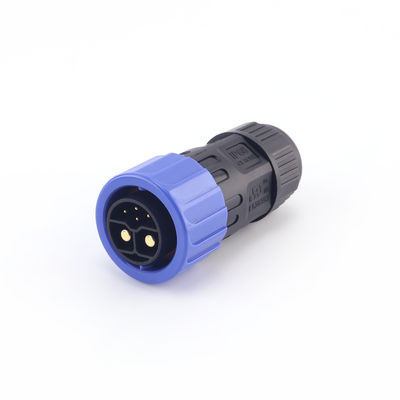

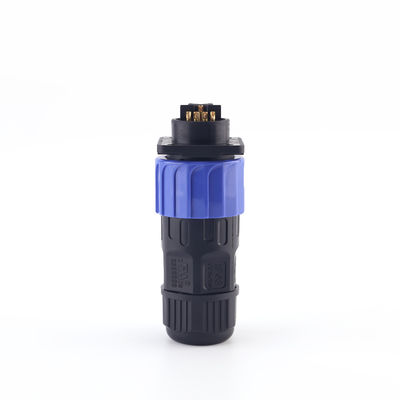

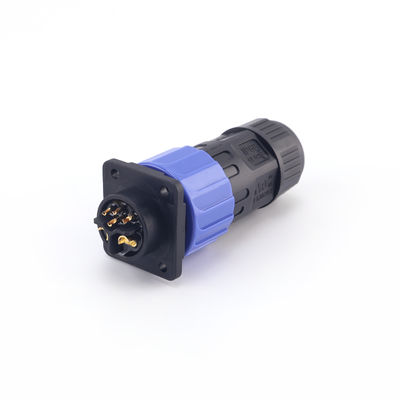

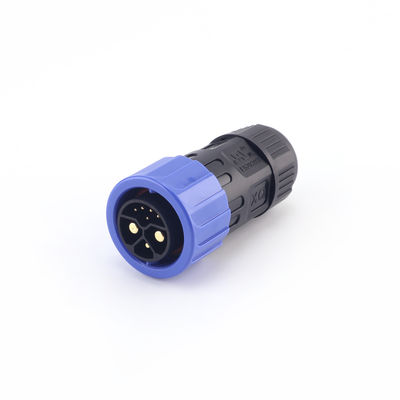

Waterproof Connector M23 Push Lock Male Female Outdoor LED Light Plug
The M23 Quick-Connect Outdoor Waterproof Connector is a fast connector designed specifically for outdoor power systems and lighting equipment. The housing is made of high-strength nylon (PA66), offering excellent abrasion resistance, impact resistance, flame retardancy, UV resistance, and aging resistance, maintaining stable operation even in harsh outdoor environments.
It features a quick-lock mechanism, allowing for tool-free insertion and removal, ensuring a stable connection and preventing loosening even in vibration-prone outdoor installation environments. With an IP67 protection rating, it effectively prevents rain, dust, moisture, and other external intrusions, ensuring safe and reliable power transmission.
Parameters:
| Cable OD | Ø6.0-12.0MM |
| Hardware Material | Copper gold plating |
| Contact Resistance | ≤ 10 mΩ |
| Connection Mode | Push Locking |
| Operating Rated | -40-+105 |
| Flame Retardant Grade | UL94 V-0 |
Performance Test Report (Factory Test)
| Parameter | Common typical values or ranges | Notes |
| Voltage Rating | 250 V / 400 V / 450 V | Some models support high voltage levels (such as solar or power systems) |
| Current Rating | Main power pin test (2 pins) | 20A |
| Contact Resistance | ≤5 mΩ | Some outdoor connector designs require ≤ 5 mΩ to reduce heat and voltage drop |
| Signal pin test | Low power pin test (5 pins) | 3A ~ 5A |
| Dielectric Withstanding Voltage | Several thousand volts (e.g. 1.5 kV / 60 s, etc.) | Responding to surges or transient overvoltages |
| Insulation Resistance | ≥10 MΩ / 500 VDC | Prevent leakage and insulation breakdown |
| Operating Temperature | High and low temperature cycling environment | -40℃ ~ +105℃ |
| Ingress Protection | IP67 | Indicates that it can be immersed in water for a long time under specified conditions and prevent dust from entering |
| Media durability / humidity / salt spray test | Often pass salt spray test / high humidity aging test | For long-term outdoor reliability |
Product Features and Advantages
- Quick-lock Structure: Tool-free, push-to-lock for higher installation and maintenance efficiency.
- High Protection Rating: IP67 sealed design, suitable for long-term outdoor use.
- Nylon Shell: PA66 material offers advantages such as flame retardancy, pressure resistance, UV resistance, and resistance to aging.
- Multi-core Optional: Supports 2-5 cores to meet power/signal transmission needs.
- Shock-resistant and Anti-loosening: Stable and reliable structure, suitable for long-term outdoor installation.
- Wide Applications: Applicable to various scenarios such as lighting, power supply, and equipment control.
After-sales Service
Warranty Service: 12-month warranty period; free replacement or repair for non-human-caused damage.
Technical Support: Product selection, application guidance, and installation instructions provided; customization services supported.
Sample Service: Samples available for testing; customer bears shipping costs, which can be deducted from the final order price.
Return and Exchange Policy: If any quality issues are found, please report them within 7 days of receiving the goods; we will handle them promptly.
Delivery Capacity: Standard products ship in 5-10 days; delivery time for customized models is negotiable.
